Diagnosis and Management of Tickborne Rickettsial Diseases: Rocky Mountain Spotted Fever, Ehrlichioses, and Anaplasmosis --- United States

Rash is observed in approximately one third of all patients with HME (although rash is described in up to 66% of children) and is rare in patients with HGA or E. ewingii infection (45,46). For children with HME and a rash, distinguishing the condition from RMSF might be difficult. Rash patterns occasionally associated with HME vary in character from petechial or maculopapular (Figure 17; 47) to diffuse erythema (48) and typically occur later in the course of disease (median: 5 days after onset; 6).The rash patterns might involve the extremities, trunk, face or, rarely, the palms and soles (49).

In certain cases, patients with RMSF or ehrlichiosis might seek medical attention for a febrile illness that mimics viral meningoencephalitis. Focal neurologic deficits, including cranial or peripheral motor nerve paralysis or sudden transient deafness, might also be observed (50).

Differential Diagnosis of Febrile Patients with Rash

The differential diagnosis of febrile patients with rash is broad. The onset of TBRD is frequently rapid, and the majority of patients experience high fever, shaking chills, severe headache, and generalized myalgias, in contrast to other tickborne diseases (e.g., Lyme disease). Tickborne viral fevers (e.g., Colorado tick fever) infrequently cause rash but should be included in the differential diagnoses of TBRD, particularly when leukopenia and thrombocytopenia are present in a patient who has recently traveled to the western United States. Clinically, TBRD might be essentially indistinguishable from the majority of viral infections, particularly those in children. The dermatologic classification of the rash, its distribution, pattern of progression and timing relative to onset of fever, and other systemic signs provide clues that help the clinician rule out other exanthemata. Maculopapular rashes might occur in association with multiple conditions, including human herpesvirus 6 infection (i.e., roseola), human parvovirus B19, enteroviral infection (e.g., coxsackievirus and echovirus), Epstein-Barr virus infection, disseminated gonococcal infection, Mycoplasma pneumoniae infection, leptospirosis, secondary syphilis, Kawasaki disease, thrombotic thrombocytopenic purpura (TTP), drug reactions, and immune complex-mediated illness (51). A petechial rash can occur in association with meningococcal infection, enteroviral infection, immune thrombocytopenic purpura, and after group A streptococcal pharyngitis. R. rickettsii infection is noted for causing a rash on the soles and palms, although this distribution typically occurs late in RMSF and in only half of cases, whereas in the majority of other bacterial or viral infections rash has not been observed. Initially, clinicians might experience difficulty distinguishing N. meningitidis infection from RMSF because both can begin as a maculopapular rash and progress to a petechial rash, but the rash and other clinical features progress more rapidly in meningococcemia than in RMSF.

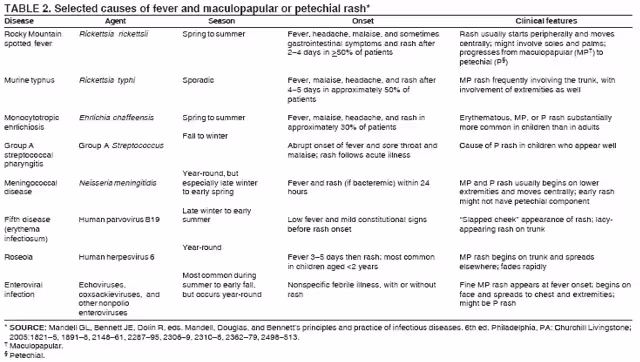

Selected infectious causes and features of maculopapular and petechial rash illnesses have been reported (Table 2). Other exanthematous diseases that can occasionally be confused with TBRD include toxic-shock syndrome, erythema multiforme, and Stevens-Johnson syndrome.

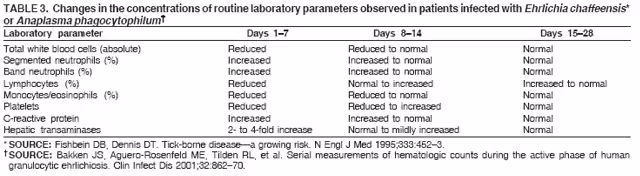

Laboratory Findings

Obtaining a complete blood cell count (CBC), comprehensive metabolic panel, and examination of peripheral blood smear are essential when considering a diagnosis of TBRD. The total white blood cell (WBC) count is typically normal in patients with RMSF, but increased numbers of immature bands are generally observed. Thrombocytopenia, mild elevations in hepatic transaminases, and hyponatremia might be observed with RMSF (35), whereas leukopenia (up to 53% of patients), thrombocytopenia (up to 94% of patients), and modest elevations of liver transaminase levels are particularly suggestive of HME and HGA (52,53). An inverse relation has been reported between the mean WBC and platelet count and the probability that HGA is the cause of nonspecific fever (53). Blood smears might be useful in identifying patients with HGA (34) or E. ewingii infection. Nonspecific changes in the concentrations of routine laboratory parameters that have been observed for patients infected with E. chaffeensis (52) or A. phagocytophilum have been reported (53; Table 3).

Cerebrospinal fluid (CSF) analysis might be a useful adjunct to laboratory diagnosis of TBRD. When CSF is evaluated in patients with RMSF or HME, a pleocytosis (usually <100 cells/microliter) is typically observed (with either a polymorphonuclear or lymphocytic predominance), whereas CSF evaluated in E. ewingii infection is characterized by a neutrophilic pleocytosis (29). Moderately elevated protein (100--200 mg/dL) and normal glucose levels also are commonly observed in patients with RMSF (54,55). A Gram stain indicating gram-negative diplococci, very low glucose (i.e., <20--30 mg/dL), or neutrophilic pleocytosis is more suggestive of meningococcal meningitis. Clinicians should distinguish TBRD-related CNS involvement from other infections (e.g., N. meningitidis); however, in the majority of patients, reliably distinguishing between RMSF, HME, and meningococcal infection based on laboratory testing is difficult (unless a pathogen is cultured). Therefore, empiric treatment for both TBRD and meningococcemia is necessary for ill patients with fever and rash and for patients in whom neither disease can be ruled out.

The following is a summary of salient clinical assessment features:

• Early clinical presentations of HME, HGA, RMSF, and E. ewingii infection include fever, headache, myalgia, and malaise and are difficult to distinguish from other infectious and noninfectious diseases.
• Patients with RMSF typically do not have a spotted or petechial rash when they initially seek medical care during the first 2--4 days of illness.
• A CBC, metabolic panel, and peripheral blood smear examination are helpful in developing both a differential diagnosis and treatment approach to TBRD.
• CSF analysis might reveal neutrophilic or lymphocytic pleocytosis and elevated protein but might not reliably distinguish TBRD and meningococcal disease, necessitating empiric antibiotic therapy for both conditions when indicated.
• Leukopenia, thrombocytopenia, mild hyponatremia, and mildly elevated hepatic transaminase levels are common and particularly useful clinical features of TBRD, although the absence of these features does not exclude a diagnosis of TBRD.
• Infrequent features of TBRD include severe abdominal pain and meningoencephalitis.
• Rash is observed frequently in RMSF, occasionally in HME, and rarely in HGA or E. ewingii infection.

Treatment and Management

An assessment of clinical signs and symptoms, along with laboratory diagnostic tests and a thorough clinical history, will help guide clinicians in developing a differential diagnosis and treatment plan. At least 50% of patients with TBRD might need to be hospitalized. Patients with evidence of organ dysfunction and severe thrombocytopenia, mental status changes, and the need for supportive therapy should be hospitalized. Essential considerations include social factors, the likelihood that the patient can and will take oral medications, and existing comorbidities. For example, a patient who appears well, has acute febrile illness and an unrevealing history and physical examination, and whose laboratory indices are within normal limits might warrant a "wait and watch" approach for 24 hours with reassessment if the patient fails to improve. If laboratory testing of a patient with a history compatible with TBRD reveals leukopenia or thrombocytopenia, or metabolic abnormalities, the clinician should consider obtaining blood cultures for other likely pathogens and specific laboratory tests and initiating empiric oral antimicrobial therapy that will effectively treat TBRD. Certain patients with TBRD can be treated on an outpatient basis with oral medication, particularly if a reliable caregiver is available in the home and the patient is compliant with follow-up medical care. When other diagnoses are under consideration, empiric treatment for these conditions can be incorporated into the therapeutic plan. For example, for a patient's condition in which meningococcal disease cannot be ruled out, intramuscular ceftriaxone should be administered in addition to oral doxycycline to provide activity against possible meningococcal infection, pending culture results. Inpatient observation and assessment of the blood cultures after 24 hours of incubation should be considered for such patients. A critical step is for clinicians to keep in close contact with patients who are treated in the outpatient setting to ensure that they are responding to therapy as expected.

Appropriate antibiotic treatment should be initiated immediately when a clinician suspects that the diagnosis could be RMSF, HME, HGA, or E. ewingii infection, based on clinical, laboratory, or epidemiologic findings. Delay in treatment can lead to severe disease and fatal outcome for TBRD (2--4). Because each of the agents causing TBRD is susceptible to tetracycline-class antibiotics, these drugs, particularly doxycycline, are considered the therapy of choice in nearly all clinical situations. Fever typically subsides within 24--48 hours after treatment when the patient receives doxycycline or another tetracycline during the first 4--5 days of illness. If a patient fails to respond to early treatment with a tetracycline antibiotic (i.e., within 48 hours), this response might be an indication that their condition is not a TBRD. Severely ill patients might require longer periods before clinical improvement is noted, especially if they have multiple organ dysfunction.

Doxycycline is the drug of choice for treatment of all TBRD in children and adults. This drug is bacteriostatic in its activity against rickettsial organisms. The recommended dose is 100 mg per dose administered twice daily (orally or intravenously) for adults or 2.2 mg/kg body weight per dose administered twice daily (orally or intravenously) for children weighing <100 lbs. (45.4 kg). Intravenous therapy is frequently indicated for hospitalized patients, and oral therapy is acceptable for patients considered to be early in the disease and who can be managed as outpatients. Oral therapy also can be used for inpatients who are not vomiting or obtunded. The optimal duration of therapy has not been established, but current recommendations for RMSF and HME are for treatment for at least 3 days after the fever subsides and until evidence of clinical improvement is noted, which is typically for a minimum total course of 5--7 days. Severe or complicated disease might require longer treatment courses. Patients with HGA should be treated with doxycycline for 10--14 days to provide appropriate length of therapy for possible incubating coinfection with Lyme disease (45).

The use of tetracyclines to treat children with TBRD is no longer a subject of controversy (56--58). Concerns regarding dental staining after tetracycline therapy have been based primarily on studies conducted during the 1960s that involved children receiving multiple courses of the drug for recurrent otitis media (59,60). The propensity of tetracyclines to bind calcium can lead to darkening of the teeth if the antibiotic is ingested during the period of tooth crown formation. More recent studies in 1971 and 1998, however, have demonstrated that although multiple exposures to tetracycline increase the risk for tooth staining, limited use of this drug in children during the first 6--7 years of life has a negligible effect on the color of permanent incisors (56,57). Beyond ages 6--7 years, the risk for tetracycline staining is of minimal consequence because visible tooth formation is complete. Moreover, a prospective study of children treated with doxycycline for RMSF demonstrated that these children did not have substantial discoloration of permanent teeth compared with those who had never received the drug (56). Because TBRD can be life-threatening and limited courses of therapy with tetracycline-class antibiotics do not pose a substantial risk for tooth staining, the American Academy of Pediatrics Committee on Infectious Diseases revised its recommendations in 1997 and has identified doxycycline as the drug of choice for treating presumed or confirmed RMSF and ehrlichial infections in children of any age (61,62).

Chloramphenicol is an alternative drug that has been used to treat RMSF (50); however, this drug is associated with various side effects and might require monitoring of blood indices. Chloramphenicol is no longer available in the oral form in the United States. Moreover, epidemiologic studies in which CDC case report data have been used suggested that patients with RMSF treated with chloramphenicol have a higher risk of dying than persons who received a tetracycline (11,63). In vitro evidence also indicates that chloramphenicol might not be an effective antibiotic for HME or HGA (64,65). Clinicians who suspect a TBRD and are considering empiric antibiotic therapy before laboratory confirmation should be aware that doxycycline provides therapeutic coverage for RMSF, HME, HGA, and E. ewingii infection.

Tetracyclines are generally contraindicated for use in pregnant women because of risks associated with malformation of teeth and bones in the fetus and hepatotoxicity and pancreatitis in the mother (66). However, tetracycline has been used successfully to treat HME in pregnant women (67), and the use of tetracyclines might be warranted during pregnancy in life-threatening situations where clinical suspicion of TBRD is high. Whereas chloramphenicol is typically the preferred treatment for RMSF during pregnancy, care must be used when administering chloramphenicol late during the third trimester of pregnancy because of risks associated with grey baby syndrome (66). Substantially limited clinical data exist that support the use of other antimicrobials during pregnancy, although rifampin has been used successfully in several pregnant women with HGA (68). In vitro studies have demonstrated that rifamycins provide effective activity against Ehrlichia and Anaplasma species (64,65), and therapy with rifampin may be considered for patients with HGA who are unsuited for tetracycline treatment because of pregnancy or a history of drug allergy (45). Clinicians should use caution, however, in ensuring that RMSF can be ruled out because the clinical presentations of RMSF and anaplasmosis are similar, and the comparative effectiveness of rifampin and doxycycline is unknown at this time.

Because certain patients with TBRD might initially receive an alternative diagnosis, they might be empirically treated with antibiotics inactive against rickettsiae, including penicillins, cephalosporins, aminoglycosides, erythromycin, or sulfonamides. This situation presents both diagnostic and therapeutic challenges. In certain cases, patients treated with beta-lactam antibiotics or sulfa-containing drugs are mistakenly thought to have drug eruptions when they later manifest a rash (66), further postponing a correct diagnosis and appropriate treatment. Because the physician might conclude that the prescribed treatment will take time to work, a delay in obtaining critical additional laboratory or clinical information also might be a result. In addition, sulfa-containing antimicrobials have been associated with increased severity of TBRD, although whether disease severity is directly related to the use of sulfa-containing drugs or the delayed administration of more effective antimicrobials is not clear. Cases of severe ehrlichiosis complicated by acute respiratory distress syndrome have been associated with the use of trimethoprim-sulfamethoxazole (69,70).

In addition, clinicians should note the overlap between early symptoms of invasive meningococcal infection and TBRD. These conditions are difficult to distinguish early in the course of illness. In patients for whom both conditions are included in the initial differential diagnoses, after performing blood cultures and a lumbar puncture, empirically treating for both diseases is appropriate. This treatment can be accomplished by adding an appropriate parenteral penicillin or cephalosporin that has activity against N. meningitidis to doxycycline therapy.

Preventive antibiotic therapy for rickettsial infection is not indicated for patients who have had recent tick bites and are not ill. Limited numbers of ticks in areas where tickborne diseases are endemic are infected with pathogenic rickettsiae. Approximately 1%--3% of vector ticks are infected with spotted fever group rickettsiae (71). However, less than 1% of these rickettsiae usually have been confirmed to be R. rickettsii (72,73). Approximately 5%--15% of lone star ticks are infected with E. chaffeensis (47), and 10%--50% of I. scapularis ticks are reported to be infected with A. phagocytophilum (74,75) in endemic areas. Therefore, the risk for such infection after a tick bite is low. Moreover, for RMSF, preventive therapy has been demonstrated to delay but not prevent the onset of symptoms (76).

The following is a summary of salient features of treatment and management:

• Clinical history, symptoms, and physical and laboratory findings should guide the clinician's approach to patient management and treatment.
• Not all patients with TBRD will require hospitalization.
• Clinicians may consider a wait and watch approach for 24--48 hours for patients early in the course of illness and who have nonsupporting history, nonspecific clinical signs, and normal laboratory findings.
• Doxycycline is the drug of choice for the treatment of presumptive or confirmed TBRD in both adults and children.
• Limited courses of tetracycline-class antibiotics (e.g., doxycycline) do not pose a substantial threat of tooth staining in children.
• Tetracyclines typically are contraindicated for use during pregnancy but might be warranted in life-threatening situations where clinical suspicion of TBRD is high.
• Delay in treatment can lead to severe disease and fatal outcome of TBRD.
• In evaluating for TBRD, when early invasive meningococcal infection cannot be ruled out, providing treatment for both conditions by adding an antimicrobial that has activity against N. meningitidis is appropriate.
• Prophylactic use of antibotics after a tick bite is not recommended.

Considerations for Management of Patients with Severe Manifestations of TBRD

A substantial number of patients with TBRD require hospitalization (6,7,10). Severe manifestations of TBRD might include prolonged fever, renal failure, disseminated intravascular coagulopathy (DIC), hemophagocytic syndrome, meningoencephalitis, and acute respiratory distress syndrome. A notable exception is that HGA has not been associated with meningoencephalitis.

RMSF is frequently a severe illness, and patients commonly require hospitalization. Up to 20% of untreated cases and 5% of treated cases have fatal outcome, making RMSF the most commonly fatal rickettsial disease in the United States (5,10). However, assessment of passive reporting of RMSF-associated death has suggested that only one third of fatal cases of RMSF were reported to CDC during 1983--1998 (77). Therefore, the actual case-fatality rate of RMSF might be closer to 5%--10%. Host factors associated with severe or fatal RMSF include advanced age, male gender, black race, chronic alcohol abuse, and glucose-6-phosphate-dehydrogenase (G6PD) deficiency (50). Deficiency of G6PD is a sex-linked genetic condition affecting approximately 12% of the U.S. black male population; deficiency of this enzyme is associated with a high proportion of fulminant cases of RMSF (50,78). Fulminant cases follow a clinical course that is fatal within 5 days of onset. Long-term health effects persisting for >1 year after acute RMSF infection include partial paralysis of the lower extremities; gangrene requiring amputation of fingers, toes, arms, or legs; hearing loss; blindness; loss of bowel or bladder control; movement disorders; and speech disorders (79). These complications are observed most frequently in persons recovering from severe, life-threatening disease, often after lengthy hospitalizations. Digital necrosis in a patient occurring late in the course of RMSF has been illustrated (Figure 18).

Similarly, HME and HGA can cause serious or fatal disease as well, although at lower rates than are observed for RMSF. At least 50% of patients with HGA and HME are hospitalized to rule out other potentially life-threatening conditions and to manage the illness (34,47). Clinical indications for admission might include immunocompromised state, pain management (i.e., headache and myalgias), mental confusion, cough, infiltrate in chest radiograph, abnormal spinal fluid findings, or specific acute organ failure. Approximately 3% of HME patients and less than 1% of HGA patients with symptoms severe enough to seek medical attention will die from the infection (25,34,47). The severity of ehrlichiosis might be related, in part, to the immune status of the patient. Persons with compromised immune systems caused by immunosuppressive therapies (e.g., corticosteroids or cancer chemotherapy), human immunodeficiency virus (HIV) infection, organ transplantation, or splenectomy appear to develop more severe disease from E. chaffeenis infection, and case-fatality rates for these persons are characteristically higher than case-fatality rates reported for the general population (30). Although the case fatality rate for HGA (0.5%--1.0%) is lower than that for HME, notable complications, including respiratory failure, a toxic-shock--like syndrome, rhabdomyolysis, pancreatitis, acute renal failure, and invasive infections caused by opportunistic viral or fungal agents can occur, especially among patients who have co-morbid illnesses or who are actively immunosuppressed (45). In addition, advanced patient age and delay in diagnosis and the onset of specific antibiotic therapy are predictors of a more severe course of HGA (53).

Management of severely ill patients with TBRD should include careful assessment of fluid and electrolyte balance. Vasopressors and rigorous fluid management might be needed, especially when the illness is complicated by renal failure or hypotension. Patients might have pulmonary infiltrates because of vasculitis that are erroneously thought to be caused by cardiac failure or pneumonia. Seizures might require aggressive treatment, and arrhythmias (e.g., atrial fibrillation or flutter) will frequently respond to treatment of the patient's underlying disease. Consultation with an intensivist or an infectious disease subspecialist might be helpful in managing these complications.

The following is a summary of salient features of severe manifestations:

• TBRD can be life-threatening.
• Severe manifestations of TBRD include prolonged fever, renal failure, myocarditis, meningoencephalitis, hypotension, acute respiratory distress syndrome, and multiple organ failure.

Confirmatory Diagnostic Tests

Rickettsial infections pose difficult diagnostic challenges to both clinicians and laboratorians. Rapid confirmatory assays are not commonly available to guide treatment decisions of acutely ill patients. However, confirmatory assays provide the physician with vital information that retrospectively validates the accuracy of the clinical diagnosis. Laboratory confirmation of infection is also vital to understanding the epidemiology and public health impact of TBRD.

Several laboratory methods are available to diagnose TBRD. However, they vary in the time required to obtain results and in the type of information they provide the clinician. Therefore, treatment decisions should be based on epidemiologic and clinical clues and should never be delayed while waiting for laboratory confirmation of a diagnosis. Similarly, test results should be interpreted in the context of the patient's illness and the epidemiologic setting. Misuse of specialized tests for patients with a low probability of the disease and in areas with a low prevalence of disease might result in confusion. A fundamental understanding of the signs, symptoms, and epidemiology of the disease is critical in guiding requests for tests and interpretation of test results for ehrlichioses, anaplasmosis, and RMSF. Studies have suggested that antibiotic therapy might diminish the development of convalescent antibodies in RMSF (CDC, unpublished data, 2005). However, the degree to which doxycycline might cause this occurrence is uncertain. If molecular or culture diagnostic methods are conducted, obtaining blood for testing before antibiotics are administered is essential to obtain the best results.

Blood-Smear Microscopy

Microscopic examination of blood smears stained with eosin-azure type dyes (e.g., Wright-Giemsa stain) might reveal morulae in the cytoplasm of infected circulating leukocytes (1%-- 20%) of patients with HME and 20%--80% of patients with HGA (45,47) during the first week of infection, which is highly suggestive of ehrlichial or anaplasma infection. However, blood smear examination is insensitive and should be performed by an experienced microscopist. In addition, a negative blood smear examination should not dissuade the caregiver from initiating treatment with doxycycline if the clinical presentation and routine laboratory findings support the diagnosis of ehrlichiosis or anaplasmosis. Blood smear examination is not useful for diagnosis of RMSF.

Serologic Testing

Serologic assays for RMSF, HME, and HGA are commonly available through multiple commercial and state public health laboratories. Serologic evaluations are commonly conducted by using the indirect immunofluorescence antibody (IFA) assay. Antibodies in the serum bind to fixed antigens on a slide and are detected by a fluorescein-labeled conjugate. Although IFA remains the principle diagnostic tool for the diagnosis of rickettsial and ehrlichial infections, no standardized antigens, conjugates, or agreement on what constitutes a positive result among the various laboratories providing these tests exist. Individual laboratories should be consulted regarding their test threshold levels. Enzyme-linked immunosorbent assay (ELISA) is becoming a more frequently used assay. Similar to IFA, the accuracy of ELISA depends on the laboratory conducting the test, the quality and specificity of the antigen, and the threshold levels at which a positive result is considered. Available ELISA tests are qualitative and cannot be used effectively to monitor increases or decreases in antibody titer.

The sensitivity of the IFA assay is substantially dependent on the timing of collection of the sample. Early in any TBRD, a majority of serologic tests will be negative. Clinical illness nearly always precedes laboratory diagnosis by any method. As the illness progresses to 7--10 days, the sensitivity of IFA serology increases. The IFA is estimated to be 94%--100% sensitive after 14 days, and that sensitivity is increased if paired samples are tested (80). The IFA is considered to be the gold standard of serologic testing for rickettsial diseases, and other serologic tests have not been developed that surpass the sensitivity and specificity of these assays. Testing two sequential serum or plasma samples together to demonstrate a rising IgG or IgM antibody level is essential to confirm acute infection. Paired serum specimens taken early (i.e., acute) and later (i.e., convalescent) in the disease course represent the preferred specimens for evaluation. Typically, these specimens should be taken at least 2--3 weeks apart to examine for a four-fold or greater increase in antibody titer (33).

The majority of patients demonstrate increased IgM or IgG titers by the second week of the illness (patients infected with certain imported rickettsiae might not demonstrate increased titers until 4 weeks after illness onset). However, patients might lack diagnostic IgG and IgM antibody titers in the first 7 days of illness, a period when the majority of patients initially seek medical care and laboratory testing is performed. The duration of time that antibodies will persist after recovery from the infection is variable. In certain persons, high titers of antibodies against A. phagocytophilum have been observed for 3½ years after the acute illness (81). For RMSF, IgG and IgM titers increase concurrently by the second week of illness, and IgM antibodies wane after 3--4 months, whereas IgG titers persist for 7--8 months (82). The majority of commercial reference laboratories conduct testing for IgG and IgM antibodies.

Cross-reactivity of antigens results in antibody responses that are typically group-specific, but not necessarily species-specific, after infections with these pathogens. For example, serologic tests that detect antibodies reactive with R. rickettsii might have resulted from previous infections with other spotted fever group rickettsial species. Similarly, antibodies reactive with E. chaffeensis or A. phagocytophilum occasionally react with the other ehrlichial species, which might impede epidemiologic distinction between the ehrlichial infections (83). Most patients with E. ewingii infections develop antibodies that react with E. chaffeensis antigens. Little cross-reactivity of Rickettsia with Ehrlichia or Anaplasma species exists. Certain serologically confirmed cases of infection thought to be RMSF, HME, or HGA might represent infections with the other agent or with another antigenically related species. The predominance of non-R. rickettsii species in tick vectors collected in RMSF-endemic areas suggests that related organisms of undetermined pathogenicity might play a role in human illness (84). This occurrence is especially true for persons who are infected with rickettsial organisms from endemic areas outside of the United States.

Nucleic Acid Detection

Amplification of specific DNA by PCR provides a rapid method for detecting TBRD infections. These tests are available from CDC, certain state health laboratories, and a limited number of research and commercial laboratories (Box). Conventional PCR tests have no specified standard, and diagnostic sensitivity and specificity might vary among individual assays (80). Doxycyline treatment, in particular, can also decrease the sensitivity of PCR (45). In studies of A. phagocytophilum infection, PCR was estimated as 60%--70% sensitive (53), and for diagnosis of infection with E. chaffeensis, PCR was estimated to be 52%--56% sensitive (25) to 87% sensitive (85). For RMSF, PCR is probably more useful for detecting the etiologic agent in a skin biopsy or autopsy tissue specimen than it is in an acute blood sample because, typically, low numbers of rickettsiae circulate in the blood in the absence of advanced disease or fulminant infection (18). PCR testing of skin biopsies alone does not offer ideal sensitivity, and a negative result does not exclude the diagnosis because of focality of vessel involvement. Laboratory confirmation of RMSF in the acute stage is improved when PCR is used in conjunction with IHC staining. PCR of whole blood specimens is more useful for confirming HME, HGA, and E. ewingii infection because of the tropism of these pathogens for circulating WBC. However, no optimal time frame has been established that is ideal for sample collection to ensure the highest sensitivity for diagnosing ehrlichioses or anaplasmosis. New techniques (e.g., real-time PCR) might offer the advantages of speed, reproducibility, quantitative capability, and low risk for contamination, compared with conventional PCR (86).

IHC Staining

Another approach to diagnosing TBRD is immunohistochemical (IHC) staining of antigens in formalin-fixed, paraffin-embedded biopsy or autopsy tissues. This test can be particularly useful to diagnose fatal TBRD in those patients for whom diagnostic levels of antibodies have not developed before death. For patients with a rash, IHC or immunofluorescence staining of a skin biopsy can be a critical diagnostic technique for RMSF. Immunostaining of skin biopsy specimens has been reported to be 100% specific and 70% sensitive in diagnosing RMSF (35). This method has been used to diagnose fatal and nonfatal cases of RMSF (18,87--89). Because rickettsiae might be focally distributed in tissue, this test might not always detect the agent. Autopsy tissues also are appropriate for evaluation and include the liver, spleen, lung, heart, kidney, and brain. The IHC method is most useful in documenting the presence of organisms in patients before initiation of antibiotic therapy or within the first 48 hours after antibiotic therapy has been initiated. IHC techniques also are available for diagnosing cases of ehrlichioses and anaplasmosis from bone marrow biopsies and tissue obtained at autopsy of fatal cases, including the spleen, lymph nodes, liver, and lung (90--92). Immunostaining for spotted fever group rickettsiae, E. chaffeensis, and A. phagocytophilum is offered by CDC and certain university-based hospitals and commercial laboratories in the United States (Box).

Culture

Because the agents that cause TBRD are obligate intracellular pathogens, they must be isolated by using cell culture techniques that are typically more labor-intensive and time-consuming than serologic, molecular, or IHC assays. Theoretically, any laboratory capable of performing routine viral isolations might have the expertise to isolate these pathogens. However, R. rickettsii is classified as a Biosafety Level-3 (BSL-3) agent, and attempts to isolate this agent should be made only in laboratories equipped to handle BSL-3 pathogens (93). Laboratories attempting culture of R. rickettsii bacteria need to comply completely with federal regulations (42 C.F.R. [2004]) regarding the registration and use of select agents (93). As a result, culture is rarely used for diagnosis, and other methods (e.g., serology, PCR, or immunostaining) are used to confirm infection.

The following is a summary of salient features of diagnostic testing:

• Blood smear microscopy might reveal presence of morulae in infected leukocytes, which is highly suggestive of HGA or, less commonly, HME.
• Blood smears are not useful to diagnose RMSF.
• Examination of paired serum samples obtained 2--3 weeks apart that demonstrate a rise in antibody titer is the most appropriate approach to confirm TBRD.
• Patients usually do not have diagnostic serum antibody titers during the first week of illness; therefore, an inability to detect antibodies (IgG or IgM) in acute-phase serum does not exclude TBRD.
• Immunohistochemistry of a biopsied skin lesion or autopsy tissues is useful for RMSF diagnosis in patients for whom diagnostic titers of antibodies have not yet developed.
• Whole blood specimens might be useful for a PCR confirmation of HME, HGA, and E. ewingii infection; however, a negative result does not rule out the diagnosis.

Surveillance and Reporting

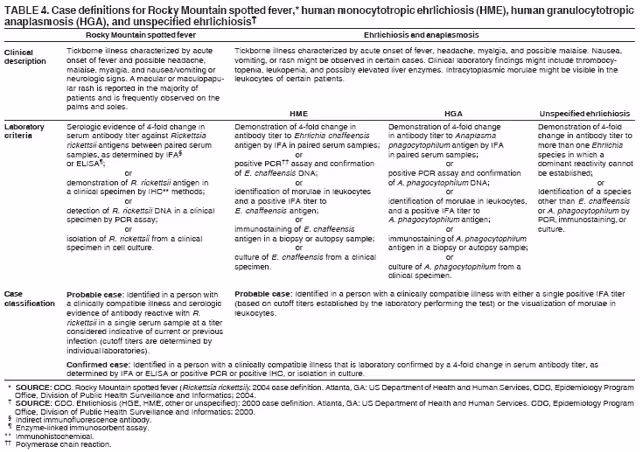

National reporting requirements are determined collaboratively by the Council of State and Territorial Epidemiologists and CDC. RMSF, anaplasmosis, and all forms of ehrlichiosis are nationally notifiable diseases. RMSF became nationally notifiable in 1989 and anaplasmosis and ehrlichiosis, in 1998. When health-care providers identify a potential case of TBRD, they should notify the local health department. The local health department, in cooperation with the state health department, can assist the health-care provider in obtaining appropriate diagnostic testing to confirm the diagnosis. All confirmed or probable cases of RMSF, HME, HGA, and E. ewingii infection should be reported to the state health department. The case definitions for confirmed and probable cases of RMSF, HME, and HGA have been reported (Table 4; 33,94). Each state health department compiles case reports and submits them to CDC, where data are compared and disseminated via the MMWR Weekly and annual Surveillance Summaries.

Since 1981, CDC has collected and analyzed surveillance data on RMSF by using two complementary systems. States submit reports electronically via the National Electronic Telecommunications System for Surveillance (NETSS) as part of the National Notifiable Disease Surveillance System. NETSS reports capture diagnosis, date of onset, and basic demographic and geographic data related to the case. In addition, physicians are encouraged to complete a standardized case report form (CRF; Appendix) and forward it to the state health department, where it is compiled with similar reports and forwarded to CDC. The CRF summarizes demographic, epidemiologic, and outcome data that are not reported in NETSS. Data collected on the CRF are useful in summarizing the epidemiologic characteristics of disease and focusing on prevention and treatment. This process includes examining lesser understood aspects of these conditions (e.g., the role of immunosuppression as a risk factor for disease; the prevalence of severe outcomes of infection, including death; and hospitalization trends). In 2001, the form was expanded to include reporting of other common TBRD, including HGA and HME, in addition to RMSF.

A surveillance system is critical for studying the changing epidemiology of TBRD and for developing effective prevention strategies and public health education programs. The detection of a cluster of RMSF cases in a region of Arizona where the disease was not known to occur and subsequent prevention and control initiatives underscore the vital role of surveillance and reporting in protecting the public's health. By the end of 2004, the highest number of RMSF cases was reported to CDC (n = 1,514), suggesting potential increased activity. However, underreporting of TBRD is probably common.

The following is a summary of salient features of surveillance and reporting:

• RMSF, HME, HGA, and other ehrlichioses are reportable diseases in the United States.
• Physicians who identify a potential case of TBRD should notify the local health department, which can assist with obtaining diagnostic testing to confirm the diagnosis.
• Surveillance and reporting of TBRD are key components of public health education and disease prevention efforts.

Prevention

No licensed vaccines for TBRD exist. Avoiding tick bites and promptly removing attached ticks remain the best disease prevention strategies. Persons should limit their exposure to tick-infested habitats, including wooded or grassy areas. Persons should walk on cleared trails and avoid brushing against tall grass and other vegetation. This practice is particularly essential during periods of peak tick activity (i.e., late spring and summer) but should be observed, regardless of the season. Protective clothing, including a hat, long-sleeved shirts, pants, socks, and closed-toe shoes are helpful in preventing ticks from reaching the skin and attaching. Wearing light-colored clothing is preferred because crawling ticks can be seen easily.

Various over-the-counter products containing DEET (N,N-diethyl-m-toluamide) are available for application on exposed skin and clothing to repel ticks. The higher the concentration of DEET, the longer the duration of protection per application. Products with DEET concentrations as low as 10% and those containing 25%--35% concentrations are considered optimal. No evidence exists that concentrations >50% are more efficacious or provide longer duration of protection (95). The American Academy of Pediatrics has recommended that DEET concentrations no greater than 20%--30% should be used for children (96). Products containing permethrin (e.g., permanone) can be used to treat outer clothing (e.g., shirts and pants) and should not be applied to skin. Permethrin is available commercially as a spray-on preparation. It should be applied evenly to outer clothing, according to label directions in a well-ventilated area. Clothing should be allowed to completely dry before being worn. Pre-treated clothing is available and remains effective for multiple launderings. The use of DEET and permethrin should be considered by persons who enter heavily infested tick habitats where the risk for being bitten is high and the potential for TBRD infection exists.

Adults entering wooded or grassy areas should inspect themselves and their children frequently for ticks. Because several hours might elapse before ticks attach and inject pathogens, frequent checks increase the likelihood of finding ticks before they transmit an infectious agent. The duration of tick attachment necessary to transmit rickettsial organisms is substantially variable and has been reported to be as little as 2--10 hours (97) to 10--20 hours (98) for R. rickettsii. Limited data exist regarding the interval of transmission after tick attachment for A. phagocytophilum, but animal studies indicate that 24--48 hours might elapse before pathogen transmission (99,100). No comparable data exists for E. chaffeensis. Sites where ticks commonly attach include, but are not limited to, the scalp, waist, armpits, groin, and under socks and the beltline. Pets should also be checked for ticks because they can carry ticks back to their homes and human companions. Regular application of ectoparasite control on pets helps to reduce the risk for human exposure to ticks.

If an attached tick is found, it should be removed by grasping with tweezers or fine-tipped forceps close to the skin and gently pulling with constant pressure. Folk remedies, including gasoline, kerosene, petroleum jelly, fingernail polish, or lit matches should never be used to extract ticks (101). Removing the tick with bare hands should be avoided because fluids containing infectious organisms might be present in the tick's body and at the wound site. Ticks that have been removed should not be crushed between the fingers to prevent contamination, and hands should be washed to avoid potential conjunctival inoculation. The bite wound should then be disinfected.

The following is a summary of salient features of prevention:

• Avoid tick bites, which is key to the prevention of TBRD.
• Limit exposure to tick habitats, including grassy and wooded areas.
• Inspect the body carefully for ticks after being in a tick habitat.
• Remove attached ticks immediately by grasping with tweezers close to skin and pulling gently with steady pressure.

TBRD Cases

The following TBRD cases were observed in health-care settings. Information from the cases can be used to reinforce medical management information related to TBRD (3,22,102) and are intended to illustrate certain common pitfalls in the diagnosis and treatment of TBRD. The case reports include a description of the case and salient features that can be considered when dealing with a potential case of TBRD.

Case 1

In June 2001, a girl aged 5 years was taken to an ED in Missouri with a 3-day history of intermittent fever, headache, mild nausea, and a sore throat. On physical examination, the patient had a fever of 105^°F (40.6^ºC) and a maculopapular rash on her legs, including the soles of her feet.

• What should be included in the differential diagnosis?

Possible causes of fever and rash in this child include meningococcemia, RMSF, HME, enteroviral infections, Kawasaki disease, drug reactions, and streptococcal disease with exanthem.

• What additional information would assist with the diagnosis?

Determine how long the rash has been present and when and where it appeared relative to onset of fever. The parent should be queried concerning medication use, immunocompromising conditions,  and recent activities that could have led to animal exposures (including dogs), sick contacts, recent travel, outdoor activities (e.g., hiking, camping, and playing in brushy areas or backyard), and real or potential tick exposures.

The parent noticed the rash, which began on the arms and legs, on the same day that the child was taken to the ED. They did not own a dog, and no history of recent travel out of the local area and no history of a tick bite were noted, although the parent said that ticks were in the area around their house.

• What laboratory tests might be useful?

A CBC, comprehensive metabolic panel, blood culture, and a rapid Streptococcus pharyngitis screen should be performed. An acute serum should be obtained for IgG and IgM antibodies to R. rickettsii, E. chaffeensis, and A. phagocytophilum, but subsequent management of the patient should not depend on results. PCR for E. chaffeensis and A. phagocytophilum using EDTA whole blood might be useful if these tests are available from a reference laboratory.

Laboratory results included a WBC count of 8,800 x 10⁹ cells/L (normal: 4.5--11.0 x 10⁹ cells/L), with 5% bands (normal: 0%--5%), 70% neutrophils (normal: 45%--75%), 17% lymphocytes (normal: 16%--46%), and 8% monocytes (normal: 4%--11%). The platelet count was 50 x 10⁹ cells/L (normal: 150--350 x 10⁹ cells/L). Serology results were not available for 3 days.

• How does this information assist with the diagnosis?

The time of year for these clinical signs should raise suspicion for TBRD. A normal WBC is frequently observed in patients with viral infections and with RMSF. Patients with RMSF will commonly develop moderate to severe thrombocytopenia as the disease progresses, although a normal platelet count is frequently observed early in the course of illness. If serologic results are not immediately available, the clinician should not be dissuaded from initiating therapy if it is clinically indicated.

• What actions, including treatment, should be taken?

On the basis of history, clinical signs, geographic location, and time of year, suspicion of a TBRD is reasonable. An appropriate course of action would include treatment with doxycycline (2.2 mg/kg body weight administered orally twice daily for a minimum of 5 days) and close follow-up to ascertain clinical response to therapy while continuing to rule out other possible causes. Appropriate antimicrobial therapy for other suspected etiologies should be considered until they can be reasonably excluded. For example, certain experts recommend administering an intramuscular dose of ceftriaxone, pending blood culture results, because meningococcal disease cannot be reliably distinguished from TBRD on clinical grounds alone. Convalescent-phase serology for RMSF, HGA, and HME should be performed 2--4 weeks later to confirm the diagnosis.

• What preventive measures can the patient and her family take to prevent infection in the future?

The most effective preventive measure is to 1) limit exposure to ticks during peak periods of activity (primarily April--September), 2) inspect body and clothing thoroughly for ticks after being in wooded or grassy areas, 3) remove attached ticks immediately by grasping with tweezers or forceps close to the skin and pulling gently with steady pressure, and 4) apply insect repellant (e.g., DEET) when exposure to grassy or wooded areas is anticipated.

Case 1 synopsis. This patient's clinical history suggested exposure to ticks, although no definitive indication of a tick bite was reported. Ticks are small (particularly in their nymphal and larval stages), and bites frequently go unnoticed because ticks might attach in places that are difficult to observe (e.g., the scalp, axillae, and inguinal regions). Up to 40% of patients with RMSF report no history of a tick bite (10,11). Therefore, the clinician should not be dissuaded from making a diagnosis of RMSF when no report of a tick bite is made. The clinical signs and laboratory values and a history that are compatible with tick exposure should guide the diagnosis and therapeutic actions. Serum samples collected on days 7 and 35 of illness demonstrated rising IgG antibody titers to R. rickettsii at 32 and 2,048, respectively.

Case 2

In mid-August 2003, a male child aged 14 months was taken to a community health clinic in Arizona after 1 day of fever 103.7^°F (39.8^°C). On physical examination, the child had a maculopapular rash that involved his palms and soles. On auscultation, abnormal breath sounds were detected in the right lower lung. The parent stated that they had not traveled out of the local area recently. No one else in the family was ill, and the child was up-to-date on vaccinations. Chest radiographic evaluation revealed a possible right lower lobe infiltrate. On the basis of clinical and radiographic findings, pneumonia and roseola infantum were diagnosed. The child was administered an intramuscular injection of ceftriaxone and sent home with a prescription for oral amoxicillin/clavulanate.

The next day, the child was taken back to the clinic with vomiting and rash that was petechial. His fever was 105.7^°F (41^°C). He was admitted to the hospital, and antibiotic treatment for pneumonia was continued. On day 3 of hospitalization, the child developed DIC. Remarkable laboratory findings included: WBC count, 16.2 x 10⁹ cells/L (normal: 4.5--11.0 x 10⁹ cells/L); platelet count, 46 x 10⁹ platelets/L (normal: 150--350 x 10⁹ cells/L); aspartate aminotransferase (AST), 291 U/L (normal: 10--40 U/L); and alanine aminotransferase (ALT), 99 U/L (normal: 10--55 U/L). The child's condition worsened, and 7 days after the onset of illness, he died of pulmonary hemorrhage.

Case 2 synopsis. A serum sample collected 5 days before the child's death tested negative by IFA for IgM and IgG antibodies reactive with R. rickettsii. However, R. rickettsii DNA was detected in serum by PCR assay. RMSF can have a rapid course; 50% of RMSF deaths occur within 9 days of illness onset (10,11). IgM and IgG antibodies are typically not detectable before the second week of illness; therefore, serology will be not useful in diagnosing the infection in its earliest stages. Fever and rash in a young child can be caused by various enteroviruses, human herpesvirus 6, N. meningitidis, measles virus, R. rickettsii, and E. chaffeensis, among other agents. Common causes of bacterial pneumonia in a child this age might include Streptococcus pneumoniae, Staphylococcus aureus, Streptococcus pyogenes, and, less commonly, M. pneumoniae. Although this child lived in an area where RMSF is not common (e.g., Arizona), the diagnosis should not be excluded because of geography. Although RMSF is more common in the south central and south Atlantic states, it should be considered endemic throughout the contiguous United States (10). TBRD are seldom treated with the appropriate antibiotic, unless they are suspected. In this context, the majority of broad spectrum antimicrobials, including penicillins, cephalosporins, aminoglycosides, erythromycin, and sulfa-containing drugs are not effective against rickettsiae, ehrlichiae, or anaplasmae.

Case 3

In early June 1996, a man aged 52 years who was HIV-seropositive sought medical care at a hospital in Florida. He had a 4-day history of fever, headache, myalgias, nausea, and vomiting. The patient had been previously healthy, with no known previous opportunistic infections. An absolute CD4+ lymphocyte count of 164 cells/µl was documented 2 months before this visit.

Physical examination revealed an acutely ill man; the patient had a fever of 103.5^ºF (39.7^ºC) and experienced dizziness and low blood pressure when he stood up (orthostatic hypotension). He reported that 2 weeks before admission, he had been bitten by a tick while hiking in central Georgia.

A CBC and chemistry panel and, because of the history of a tick bite, serologic tests for E. chaffeensis were ordered. Remarkable laboratory findings included hemoglobin 11.5 g/dL (normal: 13--18 g/dL); WBC count, 2.0 x 10⁹ cells/L (normal: 4.5--11.0 x 10⁹ cells/L), with 66% neutrophils (normal: 45%--75%), 18% bands (normal: 0%--5%), 8% lymphocytes (normal: 16%--46%), and 8% monocytes (normal: 4%--11%); and platelet count, 16 x 10⁹ cells/L (normal: 150--350 x 10⁹ cells/L). Peripheral blood smears revealed ehrlichial morulae in 2.5% of all leukocytes, including monocytes, lymphocytes, atypical lymphocytes, neutrophils, and metamyelocytes. ALT was 73 U/L (normal: 10--55 U/L), and AST was 358 U/L (normal: 10--40 U/L).

On the basis of laboratory and clinical findings, a diagnosis of HME was made, and intravenous doxycycline (100 mg every 12 hours) was initiated. Despite doxycycline therapy, the patient remained febrile, severely thrombocytopenic, and continued to have elevated liver enzymes. He developed right lower lobe pneumonia and renal failure and died 6 days after hospitalization.

Case 3 synopsis. Patient sera obtained on days 1 and 5 of hospitalization were negative for IgG and IgM antibodies reactive with E. chaffeensis. However, the correct diagnosis was revealed on admission by a finding of morulae in leukocytes, and this diagnosis was subsequently confirmed when E. chaffeensis DNA was detected by using PCR in whole blood specimens from the patient, and the agent was isolated in cell culture. HME can be a severe disease, particularly in immunosuppressed persons. HME does not commonly cause rash in adults; therefore, history of tick exposure and characteristic leukopenia and thrombocytopenia were most useful in arriving at a diagnosis. Although morulae were observed in the patient's peripheral blood, microscopy is generally insensitive, and morulae are reported to be observed in only 1%--20% of patients with HME (45,47). Therefore, a diagnosis of HME would need to be confirmed by PCR, serology, or immunostaining, or culture isolation.

Case 4

In mid-May 1999, a female aged 69 years went to her physician in upstate New York. She had a 3-day history of nausea, vomiting, fatigue, and fever. She said that her dog had died 2 days earlier after a brief illness characterized by signs similar to her own. Physical examination revealed no abnormalities. Her temperature was 100.4^ºF (38^ºC).

• What should be included in the differential diagnosis?

Possible diagnoses that should be considered include viral syndrome, foodborne illness, and urinary tract infection.

• What additional information would assist with the diagnosis?

Patient should be queried regarding other signs and symptoms, recent activities and travel, exposure to other ill persons, foods consumed, and contact with ticks. The patient had no other symptoms to report and reported no unusual activities or recent travel.

• What diagnostic tests, if any, are needed?

Because the patient's symptoms were nonspecific, a CBC should be ordered. Results will not be available until the next day.

On the basis of the signs present when the patient first went to her physician, she was diagnosed with gastroenteritis and instructed to return within 24--48 hours, if her symptoms did not improve. The patient would be contacted regarding her laboratory test results. The next day, the patient returned with continued fever and changes in mental status. Her temperature remained at 100.4^ºF (38^ºC), but she was notably confused and lethargic. Her physical examination was unremarkable and did not reveal the presence of a rash.

Laboratory tests obtained on the previous day revealed a WBC count of 3.8 x 10⁹ cells/L (normal: 4.5--11.0 x 10⁹ cells/L); a platelet count of 99 x 10⁹ cells/L (normal: 150--350 x 10⁹ cells/L); and a hemoglobin concentration of 12.7 g/dL (normal: 12--16 g/dL).

• How does this information assist with the diagnosis?

On the basis of the patient's thrombocytopenia, leukopenia, and worsening clinical condition, encephalitis and sepsis should be included in the differential diagnosis.

• What actions, including treatment, should be taken?

On the basis of presenting signs and laboratory tests, the patient was hospitalized and intravenous levofloxacin therapy was initiated for fever of unknown cause. Blood, urine, and stool cultures were ordered as well as serologic assays for B. burgdorferi, E. chaffeensis, and A. phagocytophilum, and PCR for E. chaffeensis and A. phagocytophilum.

The patient's temperature returned to normal within 48 hours, her nausea and vomiting resolved, and her blood counts returned to normal. She was discharged after 3 days. Blood, urine, and stool cultures revealed no specific pathogens, and serologic assays were negative for antibodies reactive with B. burgdorferi, E. chaffeensis, and A. phagocytophilum.

Case 4 synopsis. IHC staining of tissues from the patient's dog, submitted by the veterinarian to CDC, demonstrated abundant spotted fever group rickettsial antigens, and rickettsiae were identified within and around blood vessels in multiple tissues, including brain and testes. The cause of the dog's illness was identified as RMSF. This information was communicated to the patient's physician. When the physician contacted the patient, she reported that her fatigue and headache had persisted after discharge from the hospital. The patient was treated with oral doxycycline, and all symptoms resolved within 1 week. Subsequent testing of the patient's sera for early and late convalescent-phase antibody titer confirmed a diagnosis of RMSF. Titers of IgM and IgG antibodies were 1,024 and 512, respectively, on day 17 and declined to 256 and 256, respectively, on day 89 after illness onset. The patient did not recall a tick bite and had not seen or removed ticks from her dog, although her dog roamed freely in wooded areas before its illness. Dogs can serve as sentinels for RMSF in human populations, and infections in canines have been associated with increased risk for infection in their owners (22).

Case 5

In May 2001, a man aged 38 years sought medical attention in Tennessee with complaints of headache, fever, sore throat, and vomiting. He was treated 3 days previously by his primary care physician who diagnosed pneumonia and prescribed azithromycin and levofloxacin, but his fevers persisted. He was taken to the ED by his wife, and she said that he had new onset of confusion. He had no pets or animal exposures. He worked as a construction manager and was frequently outdoors in wooded areas but did not recall a tick bite.

• What should be included in the differential diagnosis?

The initial signs and symptoms were nonspecific, but the patient's confused state raised concern for possible involvement of the CNS. During the summer months, the differential diagnosis included viral meningitis (particularly enteroviral), arboviral meningoencephalitis (West Nile virus and others), TTP, and TBRD. Bacterial meningitis and herpes simplex virus (HSV) encephalitis do not have confined seasonality but also could cause this presentation. Sepsis and other multisystem illnesses are associated with encephalopathy, however, so the differential diagnosis remained broad.

The patient had an oral temperature of 103.4°F (39.7^ºC); blood pressure, 100/60 mmHg; and heart rate, 120 beats/minute. The skin examination revealed diffuse erythema with a several scabs on the lower legs. Examination of the abdomen revealed moderate epigastric tenderness with deep palpation but no rebound tenderness or organomegaly. Neurologic examination was nonfocal, except for altered mentation (i.e., Glasgow coma score: 13).

Laboratory testing revealed the following: WBC, 11.9 x 10⁹ cells/L (normal: 4.5--11.0 x 10⁹ cells/L); 84% segmented neutrophils (normal: 45%--75%); 8% band neutrophils (normal: 0%--5%); 3% lymphocytes (normal: 16%--46%); 5% monocytes (normal: 4%--11%); platelets, 50 x 10⁹ cells/L (normal: 150--350 x 10⁹ cells/L); total bilirubin, 3.5 mg/dL (normal: 0--1.0 mg/dL); AST, 439 U/L (normal: 10--40 U/L); ALT, 471 U/L (normal: 10--55 U/L); and alkaline phosphatase, 236 U/L (normal: 45--115 U/L). Lumbar puncture revealed a WBC of 0, RBC of 1 with normal glucose of 55 mg/dL and normal protein of 20 mg/dL. Creatinine was elevated at 3.9 mg/dL (normal: 0.6--1.5 mg/dL). Computed tomography scan of the head did not demonstrate an acute abnormality.

• How does the physical examination and laboratory information change the differential diagnosis?

Because of the normal lumbar puncture, meningitis (i.e., viral or bacterial) was a less likely diagnosis. However, examination of the CSF might be unremarkable in patients with encephalitis. The presence of thrombocytopenia and elevated transaminases was suggestive of TBRD. Additional considerations included acute cholecystitis, sepsis (possibly associated with DIC), toxic-shock syndrome (rash with multiple organ failure), and TTP (i.e., acute renal failure with fever, altered mental status, and thrombocytopenia).

• What additional tests should be performed?

Appropriate diagnostic studies should include blood culture, serologic testing for RMSF and HME (and PCR for these if available), prothrombin time and partial thromboplastin time, examination of the peripheral blood smear (with particular attention for schistocytes or intracellular morulae), and ultrasound of the gallbladder to evaluate for inflammation.

The coagulation studies were within normal limits, and no schistocytes or morulae were observed on smear. Abdominal ultrasound revealed a normal gallbladder but mild splenomegaly. Therapy was initiated with ceftriaxone and vancomycin. Approximately 6 hours later, the patient developed seizures, and acyclovir and doxycycline were added to the course of medicine to effectively treat herpesvirus infection and TBRD. A magnetic resonance imaging scan of the brain was normal, and electroencephalography revealed nonspecific slowing. Antibodies to R. rickettsii and E. chaffeensis were not detected in acute sera. HSV PCR on CSF was negative. Blood cultures did not grow bacteria. The patient defervesced, and mental status normalized over the next 3 days.

Case 5 synopsis. Serum obtained 31 days after the initial signs and symptoms contained no antibodies to R. rickettsii but had an IgG titer of 256 to E. chaffeensis, retrospectively confirming the diagnosis of HME. Whereas headache is a nearly universal complaint among patients with HME, altered sensorium might be observed in up to 20% of cases (6). Other CNS manifestations include seizures, meningismus, cranial nerve palsies, focal weakness, and coma. A lymphocytic pleocytosis can be observed in the CSF in approximately 50% of patients with HME who undergo lumbar puncture (103). Neutrophilic pleocytosis can be observed early in the course of the illness. Neuroimaging studies are usually normal or nonspecific. TBRD should be included in the differential diagnosis of patients presenting with clinical evidence of CNS infection or CSF findings suggestive of aseptic meningitis.

Case 6

In July 1994, a man aged 44 years went to see his physician in central Minnesota. He complained of a 1-week history of fever, chills, generalized myalgias, and right temporomandibular joint pain. When he became ill, he treated himself empirically with ampicillin, which was available at home, for 2 days. Because the patient experienced no clinical improvement, he sought medical care. The patient worked outdoors and was frequently in wooded areas. Fourteen days before he went to his physician, he removed two deer ticks that had been attached to his skin for an unknown period.

Physical examination findings. The patient had a low-grade fever of 100.6^ºF (38.1^ºC). Examination of heart, lungs, and abdomen were normal. No lymphadenopathy, hepatosplenomegaly, or skin rash were noted. Cardiovascular, pulmonary, gastrointestinal, or neurological symptoms were not present. Overall, physical examination was unremarkable, except for fever.

Laboratory findings. No laboratory evaluations were performed during the visit. A presumptive diagnosis of acute Lyme disease was made, and empirical treatment with amoxicillin and probenecid was initiated; a 1-week follow-up visit was scheduled. Five days after the outpatient visit, the patient died suddenly at home. He had complained of shortness of breath the day before his death.

Case 6 synopsis. Histopathologic examination of the patient's heart revealed widespread transmural myocarditis with neutrophilic and lymphocytic infiltrates. Postmortem serum specimens were evaluated initially for presumptive carditis as a result of B. burgdorferi infection. Serum titers of IgG and IgM antibodies to B. burgdorferi were not detected by ELISA and western blotting. PCR assays of serum and whole blood for B. burgdorferi also were negative. However, antibody titers to A. phagocytophilum (formerly known as E. equi) were significantly elevated at titer >256 by IFA methods. Detection of DNA extracted by PCR from whole blood and positive IHC staining of cardiac tissue confirmed a diagnosis of anaplasmosis. Although infection with A. phagocytophilum was demonstrated in this case, the pathogenesis of the associated carditis was less clear (104).

The diagnosis of HGA can be difficult because of the nonspecific nature of the febrile illness frequently observed when the patient first seeks medical care. In regions where both Lyme disease and HGA are known to occur, distinguishing between the diseases in the early stages of illness might be difficult. Because treatment should be initiated before a definitive diagnosis is made, selection of an antimicrobial effective against both rickettsial organisms and B. burgdorferi (e.g., doxycycline) is recommended. This case also underscores the importance of close follow-up of patients treated for TBRD on an outpatient basis. Because these diseases can rapidly progress, clinicians should emphasize to patients the need to return for reevaluation if substantial improvement is not observed within 24--48 hours of initiation of treatment.

Conclusion

TBRD continue to cause severe illness and death in otherwise healthy adults and children, despite the availability of low cost, effective antimicrobial therapy. The greatest challenge to clinicians is the difficult diagnostic dilemma posed by these infections early in their clinical course when antibiotic therapy is most effective.

Early clinical presentations of HME, HGA, RMSF, and E. ewingii infection include fever, headache, myalgia, and malaise and are difficult to distinguish from other infectious and noninfectious diseases. Rash is observed frequently in RMSF, occasionally in HME, and rarely in HGA. TBRD tend to occur seasonally, with the majority of cases occurring during the warmer spring and summer months. However, cases might develop year-round. A detailed history of recent recreational or occupational activities might reveal potential exposure to ticks, although the absence of a history of a recent tick bite should not dissuade clinicians from considering a diagnosis of TBRD.

TBRD can be life-threatening. Severe manifestations of TBRD include prolonged fever, renal failure, myocarditis, meningoencephalitis, hypotension, acute respiratory distress syndrome, and multiple organ failure. Patients usually do not have diagnostic serum antibody levels during the first week of illness; therefore, an inability to detect antibodies (IgG or IgM) in acute-phase serum does not exclude TBRD. Health-care providers should not delay treatment while waiting for a diagnosis; rather, they should empirically provide treatment if they suspect TBRD. Doxycycline is the drug of choice for the treatment of presumptive or confirmed TBRD in both adults and children.

Examination of paired serum samples obtained during acute illness and 2--3 weeks later that demonstrate a rise in antibody titer is the most appropriate approach to confirm TBRD. Physicians who identify a potential case of TBRD should notify the local health department, which can assist with obtaining diagnostic testing to confirm the diagnosis.

No licensed vaccines for TBRD are available. Avoiding tick bites and promptly removing attached ticks remain the best disease prevention strategies.

Acknowledgments

The preparers acknowledge Jim Gathany, CDC, for the tick photographs and Karoyle Colbert, CDC, for creating the tick distribution map.

1. Dumler JS, Barbet AF, Bekker CPJ, et al. Reorganization of genera in the families Rickettsiaceae and Anaplasmataceae in the order Rickettsiales: unification of some species of Ehrlichia with Anaplasma, Cowdria with Ehrlichia and Ehrlichia with Neorickettsia, descriptions of six new species combinations and designation of Ehrlichia equi and `HGE agent' as subjective synonyms of Ehrlichia phagocytophila. Int J Syst Evol Microbiol 2001;51:2145--65.
2. CDC. Consequences of delayed diagnosis of Rocky Mountain spotted fever in children---West Virginia, Michigan, Tennessee, and Oklahoma, May--July 2000. MMWR 2000;49:885--8.
3. CDC. Fatal cases of Rocky Mountain spotted fever in family clusters---three states, 2003. MMWR 2004;53:407--10.
4. Kirkland KB, Wilkinson WE, Sexton DJ. Therapeutic delay and mortality in cases of Rocky Mountain spotted fever. Clin Infect Dis 1995;20:1118--21.
5. Thorner AR, Walker DH, Petri WA Jr. Rocky Mountain spotted fever. Clin Infect Dis 1998;27:1353--60.
6. Fishbein DB, Dawson JE, Robinson LE. Human ehrlichiosis in the United States, 1985--1990. Ann Intern Med 1994;120:736--43.
7. Bakken JS, Krueth J, Wilson-Nordskog C, Tilden RL, Asanovich K, Dumler JS. Clinical and laboratory characteristics of human granulocytic ehrlichiosis. JAMA 1996;275:199--205.
8. O'Reilly M, Paddock C, Elchos B, Goddard J, Childs J, Currie M. Physician knowledge of the diagnosis and management of Rocky Mountain spotted fever---Mississippi, 2002. Ann NY Acad Sci 2003; 990:295--301.
9. Helmick CG, Bernard KW, D'Angelo LJ. Rocky Mountain spotted fever: clinical, laboratory, and epidemiological features of 262 cases. J Infect Dis 1984;150:480--8.
10. Treadwell TA, Holman RC, Clarke MJ, Krebs JW, Paddock CD, Childs JE. Rocky Mountain spotted fever in the United States, 1993--1996. Am J Trop Med Hyg 2000; 63:21--6.
11. Dalton MJ, Clarke MJ, Holman RC, et al. National surveillance for Rocky Mountain spotted fever, 1981--1992: epidemiologic summary and evaluation of risk factors for fatal outcome. Am J Trop Med Hyg 1995;52:405--13.
12. Gardner SL, Holman RC, Krebs JW, Berkelman R, Childs JE. National surveillance for the human ehrlichioses in the United States, 1997--2002, and proposed methods for evaluation of data quality. Ann NY Acad Sci 2003;990:80--9.
13. CDC. Summary of notifiable diseases---United States, 2003. MMWR 2005;52.
14. Demma LJ, Holman RC, McQuiston JH, Krebs JW, Swerdlow DL. Epidemiology of human ehrlichiosis and anaplasmosis in the United States, 2001--2002. Am J Trop Med Hyg 2005;73:400--9.
15. Marshall GS, Jacobs RF, Schutze GE, et al. Ehrlichia chaffeensis seroprevalence among children in the southeast and south-central regions of the United States. Arch Pediatr Adolesc Med 2002;156:166--70.
16. Marshall GS, Stout GG, Jacobs RF, et al. Antibodies reactive to Rickettsia rickettsii among children living in the southeast and south central regions of the United States. Arch Pediatr Adolesc Med 2003;157:443--8.
17. Bustamante ME, Varela G. Una nueva rickettsiosis en Mexico: existencia de la fiebre manchada americana en los estados de Sinaloa y Sonora. México D.F., México: Revista del Instituto de Salubridad y Enfermedades Tropicales; 1943;4:189--210.
18. Demma LJ, Traeger MS, Nicholson WL, et al. Rocky Mountain spotted fever from an unexpected tick vector in Arizona. N Engl J Med 2005;353:587--94.
19. Sexton DJ, Walker DH. Spotted fever group rickettsioses. In: Guerrant RL, Walker DH, Weller PF, eds. Tropical infectious diseases: principles, pathogens, and practice. Philadelphia, PA: Churchill Livingstone; 2006:539--47.
20. Ripoll CM, Remondegui CE, Ordonez G, et al. Evidence of rickettsial spotted fever and ehrlichial infections in a subtropical territory of Jujuy, Argentina. Am J Trop Med Hyg 1999;61:350--4.
21. Yevich SJ, Sanchez JL, DeFraites RF, et al. Seroepidemiology of infections due to spotted fever group rickettsiae and Ehrlichia species in military personnel exposed in areas of the United States where such infections are endemic. J Infect Dis 1995;171:1266--73.
22. Paddock CD, Brenner O, Vaid C, et al. Short report: concurrent Rocky Mountain spotted fever in a dog and its owner. Am J Trop Med Hyg 2002;66:197--9.
23. Elchos BN, Goddard J. Implications of presumptive fatal Rocky Mountain spotted fever in two dogs and their owner. J Am Vet Med Assoc 2003;223:1450--2.
24. Carpenter CF, Gandhi TK, Kong LK, et al. The incidence of ehrlichial and rickettsial infection in patients with unexplained fever and recent history of tick bite in central North Carolina. J Infect Dis 1999;180:900--3.
25. Olano JP, Masters E, Hogrefe W, Walker DH. Human monocytotropic ehrlichiosis, Missouri. Emerg Infect Dis 2003;9:1579--86.
26. Standaert SM, Dawson JE, Schaffner W, et al. Ehrlichiosis in a golf-oriented retirement community. N Engl J Med 1995;333:420--5.
27. Belongia EA, Reed KD, Mitchell PD, et al. Tickborne infections as a cause of nonspecific febrile illness in Wisconsin. Clin Infect Dis 2001; 32:1434--9.
28. Nadelman RB, Horowitz HW, Hsieh T-C, et al. Simultaneous human granulocytic ehrlichiosis and Lyme borreliosis. N Engl J Med 1997;337:27--30.
29. Buller RS, Arens M, Hmiel SP, et al. Ehrlichia ewingii, a newly recognized agent of human ehrlichiosis. N Engl J Med 1999;341:148--55.
30. Paddock CD, Folk SM, Shore GM, et al. Infections with Ehrlichia chaffeensis and Ehrlichia ewingii in persons coinfected with human immunodeficiency virus. Clin Infect Dis 2001;33:1586--94.
31. Childs JE, Paddock CD. The ascendancy of Amblyomma americanum as a vector of pathogens affecting humans in the United States. Annu Rev Entomol 2003;48:307--37.
32. Breitschwerdt EB, Hegarty BC, Hancock SI. Sequential evaluation of dogs naturally infected with Ehrlichia canis, Ehrlichia chaffeensis, Ehrlichia equi, Ehrlichia ewingii, or Bartonella vinsonii. J Clin Microbiol 1998;36:2645--51.
33. CDC. Ehrlichiosis (HGE, HME, other or unspecified): 2000 case definition. Atlanta, GA: US Department and Health and Human Services, CDC, Division of Public Health Surveillance and Informatics; 2004. Available at http://www.cdc.gov/epo/dphsi/casedef/ehrlichiosis_current.htm.
34. Bakken JS, Dumler JS. Human granulocytic ehrlichiosis. Clin Infect Dis 2000;31:554--60.
35. Walker DH. Rocky Mountain spotted fever: a seasonal alert. Clin Infect Dis 1995;20:1111--7.
36. Jensenius M, Fournier P-E, Vene S, et al. African tick bite fever in travelers to rural sub-equatorial Africa. Clin Infect Dis 2003;36:1411--7.
37. CDC. African tick-bite fever among international travelers---Oregon, 1998. MMWR 1998;47:950--2.
38. Jensenius M, Fournier P-E, Raoult D. Tick-borne rickettsioses in international travellers. Int J Infect Dis 2004;8:139--46.
39. McDonald JC, MacLean JD, McDade JE. Imported rickettsial disease: clinical and epidemiological features. Am J Med 1988;85: 799--805.
40. Paddock CD, Sumner JW, Comer JA, et al. Rickettsia parkeri: a newly recognized cause of spotted fever rickettsiosis in the United States. Clin Infect Dis 2004;38:805--11.
41. McCall CL, Curns AT, Rotz LD, et al. Fort Chaffee revisited: the epidemiology of tick-borne rickettsial and ehrlichial diseases at a natural focus. Vector Borne Zoonotic Dis 2001;1:119--27.
42. Davis AE, Bradford WD. Abdominal pain resembling acute appendicitis in Rocky Mountain spotted fever. JAMA 1982;247:2811--2.
43. Hattwick MAW, Retailliau H, O'Brien RJ, Slutzker M, Fontaine RE, Hanson B. Fatal Rocky Mountain spotted fever. JAMA 1978; 240:1499--503.
44. Sexton DJ, Corey GR. Rocky Mountain "spotless" and "almost spotless" fever: a wolf in sheep's clothing. Clin Infect Dis 1992;15: 439--48.
45. Bakken JS, Dumler JS. Ehrlichiosis and anaplasmosis. Infect Med 2004;21:433--51.
46. Jacobs RF, Schutze GE. Ehrlichiosis in children. J Pediatr 1997;131:184--92.
47. Paddock CD, Childs JE. Ehrlichia chaffeensis: a prototypical emerging pathogen. Clin Microbiol Rev 2003;16:37--64.
48. Fichtenbaum CJ, Peterson LR, Weil GJ. Ehrlichiosis presenting as a life-threatening illness with features of the toxic shock syndrome. Am J Med 1993;95:351--7.
49. Harkess JR. Ehrlichiosis. Infect Dis Clin North Amer 1991;5:37--51.
50. Walker DH, Raoult D. Rickettsia rickettsii and other spotted fever group rickettsiae (Rocky Mountain spotted fever and other spotted fevers). In: Mandell GL, Bennett JE, Dolin R, eds. Mandell, Douglas, and Bennett's principles and practice of infectious diseases. 6th ed. Philadelphia, PA: Churchill Livingstone; 2005:2287--95.
51. Weber D, Cohen MS, Rutala WA. The acutely ill patient with fever and rash. In: Mandell GL, Bennett JE, Dolin R, eds. Mandell, Douglas, and Bennett's principles and practice of infectious diseases. 6th ed. Philadelphia, PA: Churchill Livingstone; 2005:729--46.
52. Fishbein DB, Dennis DT. Tick-borne disease---a growing risk. N Engl J Med 1995;333:452--3.
53. Bakken JS, Aguero-Rosenfeld ME, Tilden RL, et al. Serial measurements of hematologic counts during the active phase of human granulocytic ehrlichiosis. Clin Infect Dis 2001;32:862--70.
54. Gorman RJ, Saxon S, Snead OC 3rd. Neurologic sequelae of Rocky Mountain spotted fever. Pediatr 1981;67:354--7.
55. Kaplowitz LG, Fischer JJ, Sparling PF. Rocky Mountain spotted fever: a clinical dilemma. In: Remington JB, Swartz HN, eds. Current clinical topics in infectious diseases. Vol. 2. New York, NY: McGraw-Hill; 1981:89--108.
56. Lochary ME, Lockhart PB, Williams WT Jr. Doxycycline and staining of permanent teeth. Pediatr Infec Dis J 1998;17:429--31.
57. Grossman ER, Walchek A, Freedman H, Flanagan C. Tetracyclines and permanent teeth: the relation between dose and tooth color. Pediatr 1971;47:567--70.
58. Abramson JS, Givner LB. Should tetracycline be contraindicated for treatment of presumed Rocky Mountain spotted fever in children less than 9 years of age? Pediatrics 1990;86:123--4.
59. Wallman IS, Hilton HG. Teeth pigmented by tetracycline. Lancet 1962;1:827--9.
60. Weyman J, Porteous JR. Tetracycline discolouration and bands in human teeth. Brit Dent J 1963;115:499.
61. American Academy of Pediatrics. Ehrlichia infections (human ehrlichioses). In: Pickering LK, Baker CJ, Overturf GD, Prober CG, eds. 2003 Red Book: report of the Committee on Infectious Diseases, 26th ed. Elk Grove Village, Illinois: American Academy of Pediatrics, Committee on Infectious Diseases; 2003:266--9.
62. American Academy of Pediatrics. Rocky Mountain spotted fever. In: Pickering LK, Baker CJ, Overturf GD, Prober CG, eds. 2003 Red Book: report of the Committee on Infectious Diseases. 26th ed. Elk Grove Village, Illinois: American Academy of Pediatrics; 2003:532--4.
63. Holman RC, Paddock CD, Curns AT, Krebs JW, McQuiston JH, Childs JE. Analysis of risk factors for fatal Rocky Mountain spotted fever: evidence for superiority of tetracyclines for therapy. J Infect Dis 2001;184:1437--44.
64. Brouqui P, Raoult D. In vitro susceptibility of the newly recognized agent of ehrlichiosis in humans, Ehrlichia chaffeensis. Antimicrob Agents Chemother 1992;36:2799--803.
65. Klein MB, Nelson CM, Goodman JL. Antibiotic susceptibility of the newly cultivated agent of human granulocytic ehrlichiosis: promising activity of quinolones and rifamycins. Antimicrob Agents Chemother 1997;41:76--9.
66. Walker DH, Sexton DJ. Rickettsia rickettsii. In: Yu VL, Merigan TC Jr, Barriere SL, eds. Antimicrobial therapy and vaccines. Baltimore: Williams & Wilkins; 1999:562--8.
67. Smith Sendev AE, Sehdev PS, Jacobs R, Dumler JS. Human monocytic ehrlichiosis presenting as acute appendicitis during pregnancy. Clin Infect Dis 2002;35:e99--e102.
68. Buitrago MI, IJdo JW, Rinaudo P, et al. Human granulocytic ehrlichiosis during pregnancy treated successfully with rifampin. Clin Infect Dis 1998;27:213--5.
69. Peters TR, Edwards KM, Standaert SM. Severe ehrlichiosis in an adolescent taking trimethoprim-sulfamethoxazole. Pediatr Infect Dis J 2000;19:170--2.
70. Brantley RK. Trimethoprim-sulfamethoxazole and fulminant ehrlichiosis [Letter]. Pediatr Infect Dis J 2001;20:231.
71. Burgdorfer W. Rocky Mountain spotted fever. In: Hubbert WT, McCullough WF, Schnurrenberger PR, eds. Diseases transmitted from animals to man. 6th ed. Springfield, IL: Charles C. Thomas; 1975:396--404.
72. Niebylski ML, Peacock MG, Schwan TG. Lethal effect of Rickettsia rickettsii on its tick vector (Dermacentor andersoni). Appl Environ Microbiol 1999;65:773--8.
73. Pretzman C, Daugherty N, Poetter K, Ralph D. The distribution and dynamics of Rickettsia in the tick population of Ohio. Ann NY Acad Sci 1990;590:227--36.
74. Pancholi P, Kolbert CP, Mitchell PD, et al. Ixodes dammini as a potential vector of human granulocytic ehrlichiosis. J Infect Dis 1995;172:1007--12.
75. Magnarelli LA, Stafford KC III, Mather TN, Yeh M-T, Horn KD, Dumler JS. Hemocytic Rickettsia-like organisms in ticks: serologic reactivity with antisera to Ehrlichiae and detection of DNA of agent of human granulocytic ehrlichiosis by PCR. J Clin Microbiol 1995;33:2710--4.
76. Kenyon RH, Williams RG, Oster CN, Pedersen CE Jr. Prophylactic treatment of Rocky Mountain spotted fever. J Clin Microbiol 1978;8:102--4.
77. Paddock CD, Holman RC, Krebs JW, Childs JE. Assessing the magnitude of fatal Rocky Mountain spotted fever in the United States: comparison of two national data sources. Am J Trop Med Hyg 2002;67:349--54.
78. Walker DH, Hawkins HK, Hudson P. Fulminant Rocky Mountain spotted fever: its pathologic characteristics associated with glucose-6-phosphate dehydrogenase deficiency. Arch Pathol Lab Med 1983;107:121--5.
79. Archibald LK, Sexton DJ. Long-term sequelae of Rocky Mountain spotted fever. Clin Infect Dis 1995;20:1122--5.
80. Brouqui P, Bacellar F, Baranton G, et al. Guidelines for the diagnosis of tick-borne bacterial diseases in Europe. Clin Microbiol Infect Dis 2004;10:1108--32.
81. Bakken JS, Haller I, Riddell D, Walls JJ, Dumler JS. The serological response of patients infected with the agent of human granulocytic ehrlichiosis. Clin Infect Dis 2002;34:22--7.
82. Clements ML, Dumler JS, Fiset P, Wisseman CL Jr, Snyder MJ, Levine MM. Serodiagnosis of Rocky Mountain spotted fever: comparison of IgM and IgG enzyme-linked immunosorbent assays and indirect fluorescent antibody test. J Infect Dis 1983;148:876--80.
83. Comer JA, Nicholson WL, Olson JG, Childs JE. Serologic testing for human granulocytic ehrlichiosis at a national referral center. J Clin Microbiol 1999;37:558--64.
84. Ammerman NC, Swanson KI, Anderson JM, et al. Spotted-fever group Rickettsia in Dermacentor variabilis, Maryland. Emerg Infect Dis 2004;10:1478--81.
85. Everett ED, Evans KA, Henry RB, McDonald G. Human ehrlichiosis in adults after tick exposure: diagnosis using polymerase chain reaction. Ann Intern Med 1994;120:730--5.
86. Fenollar F, Raoult D. Molecular genetic methods for the diagnosis of fastidious microorganisms. APMIS 2004;112:785--807.
87. Dumler JS, Gage WR, Pettis GL, Azad AF, Kuhadja FP. Rapid immunoperoxidase demonstration of Rickettsia rickettsii in fixed cutaneous specimens from patients with Rocky Mountain spotted fever. Am J Clin Pathol 1990;93:410--4.
88. Walker DH, Cain BG, Olmstead PM. Laboratory diagnosis of Rocky Mountain spotted fever by immunofluorescent demonstration of Rickettsia rickettsii in cutaneous lesions. Am J Clin Pathol 1978;69:619--23.
89. Procop GW, Burchette JL Jr, Howell DN, Sexton DJ. Immunoperoxidase and immunofluorescent staining of Rickettsia rickettsii in skin biopsies: a comparative study. Arch Pathol Lab Med 1997;121:894--9.
90. Dawson JE, Paddock CD, Warner CK, et al. Tissue diagnosis of Ehrlichia chaffeensis in patients with fatal ehrlichiosis by use of immunohistochemistry, in situ hybridization, and polymerase chain reaction. Am J Trop Med Hyg 2001;65:603--9.
91. Marty AM, Dumler JS, Imes G, Brusman HP, Smrkovski LL, Frisman DM. Ehrlichiosis mimicking thrombotic thrombocytopenic purpura. A case report and pathological correlation. Hum Pathol 1995;26:920--5.
92. Dumler JS, Dawson JE, Walker DH. Human ehrlichiosis: hematopathology and immunohistologic detection of Ehrlichia chaffeensis. Hum Pathol 1993;24:391--6.
93. US Department of Health and Human Services. Possession, use, and transfer of select agents and toxins; final rule, 42 CFR, Parts 72 and 73. Federal Register 2005;70(52):13294--325.
94. CDC. Rocky Mountain spotted fever (Rickettsia rickettsii): 2004 case definition. Atlanta, GA: US Department and Health and Human Services, CDC, Division of Public Health Surveillance and Informatics; 2004. Available at http://www.cdc.gov/epo/dphsi/casedef/rockycurrent.htm.
95. Fradin MS, Day JF. Comparative efficacy of insect repellents against mosquito bites. N Engl J Med 2002;347:13--8.
96. American Academy of Pediatrics. International Travel. In: Pickering LK, Baker CJ, Overturf GD, Prober CG, eds. 2003 Red Book: report of the Committee on Infectious Diseases. 26th ed. Elk Grove Village, IL: American Academy of Pediatrics; 2003:93--8.
97. Moore JJ. Time relationships of the wood-tick in the transmission of Rocky Mountain spotted fever. J Infect Dis 1911;8:339--47.
98. Spencer RR, Parker RR. Rocky Mountain spotted fever: infectivity of fasting and recently fed ticks. Public Health Rep 1923;38:333--9.
99. Katavolos P, Armstrong PM, Dawson JE, Telford SR III. Duration of tick attachment required for transmission of granulocytic ehrlichiosis. J Infect Dis 1998;177:1422--5.
100. des Vignes F, Piesman J, Heffernan R, Schulze TL, Stafford KC III, Fish D. Effect of tick removal on transmission of Borrelia burgdorferi and Ehrlichia phagocytophila by Ixodes scapularis nymphs J Infect Dis 2001;183:773--8.
101. Needham GR. Evaluation of five popular methods of tick removal. Pediatrics 1985;75:997--1002.
102. Masters EJ, Olson GS, Weiner SJ, Paddock CD. Rocky Mountain spotted fever: a clinician's dilemma. Arch Intern Med 2003;163: 769--74.
103. Ratnasamy N, Everett ED, Roland WE, McDonald G, Caldwell CW. Central nervous system manifestations of human ehrlichiosis. Clin Infect Dis 1996;23:314--9.
104. Jahangir A, Kolbert C, Edwards W, Mitchell P, Dumler JS, Persing DH. Fatal pancarditis associated with human granulocytic ehrlichiosis in a 44-year-old man. Clin Infect Dis 1998;27:1424--7.

Table 1


Return to top.
Figure 1


Return to top.
Table 2


Return to top.
Figure 2


Return to top.
Table 3


Return to top.
Figure 3


Return to top.
Table 4


Return to top.
Figure 4


Return to top.
Figure 5


Return to top.
Figure 6


Return to top.
Figure 7


Return to top.
Figure 8


Return to top.
Figure 9


Return to top.
Figure 10


Return to top.
Figure 11


Return to top.
Figure 12


Return to top.
Figure 13


Return to top.
Figure 14


Return to top.
Figure 15


Return to top.
Figure 16


Return to top.
Figure 17


Return to top.
Figure 18


Return to top.
Box


Return to top.

Use of trade names and commercial sources is for identification only and does not imply endorsement by the U.S. Department of Health and Human Services. References to non-CDC sites on the Internet are provided as a service to MMWR readers and do not constitute or imply endorsement of these organizations or their programs by CDC or the U.S. Department of Health and Human Services. CDC is not responsible for the content of pages found at these sites. URL addresses listed in MMWR were current as of the date of publication.

Disclaimer   All MMWR HTML versions of articles are electronic conversions from ASCII text into HTML. This conversion may have resulted in character translation or format errors in the HTML version. Users should not rely on this HTML document, but are referred to the electronic PDF version and/or the original MMWR paper copy for the official text, figures, and tables. An original paper copy of this issue can be obtained from the Superintendent of Documents, U.S. Government Printing Office (GPO), Washington, DC 20402-9371; telephone: (202) 512-1800. Contact GPO for current prices.

Date last reviewed: 3/16/2006
